How to Avoid Exterior Cladding Failure: Comprehensive Engineering Guide

The contemporary building envelope relies on structural transparency, durability, and strict environmental control. Designers and engineers face the task of integrating the fenestration and cladding systems into the core architecture of large-scale facilities. How to Avoid Exterior Cladding Failure. This approach requires balancing large, uninterrupted spans of exterior surfacing with structural stability, thermal performance, and occupant comfort.

The design of modern commercial facades goes beyond simple space division. Heavy exterior skins act as thermal, acoustic, and environmental barriers while maintaining minimal visual distraction and long-term durability. Achieving these conditions requires close collaboration among structural engineers, material scientists, and specialty installation contractors.

To ensure long-term performance and financial control, project teams must look past basic compliance metrics to analyze physical constraints and loading histories. This comprehensive reference document explores the engineering mechanics, system variations, testing methodologies, and economic variables that govern commercial facades. By examining the physical behavior of building systems, this guide provides a systematic methodology for specifying assets that remain efficient over their design life.

Introduction

High-end commercial and institutional developments across the United States increasingly rely on advanced exterior envelopes to connect internal workspaces with the exterior environment. Achieving these designs requires extreme engineering precision and a thorough understanding of material science.

Designers and engineers working with large-scale wall makeups face the challenge of balancing structural integrity with optical clarity and thermal performance. These systems must resist severe environmental loads while remaining free from internal distortion or optical imperfections. Knowing how to select and detail these advanced materials requires cross-disciplinary coordination between structural engineers, material temperers, and specialty installation contractors.

To ensure long-term performance and financial control, project teams must look past basic compliance metrics to analyze physical constraints and loading histories. This comprehensive reference document explores the engineering mechanics, system variations, testing methodologies, and economic variables that govern commercial glazing and solid facade systems. By exploring the physical behavior of building systems, this guide provides a systematic methodology for specifying assets that remain efficient over their design life.

Understanding How to Avoid Exterior Cladding Failure

When design professionals and building envelope consultants investigate how to avoid exterior cladding failure, they must treat the building facade as an integrated thermodynamic system rather than a collection of independent exterior panels. The primary goal is to design an envelope that maximizes thermal resistance, manages moisture, and controls acoustic transfer without relying on unnecessary material weight or complex, high-maintenance connections.

A common pitfall in modern design is the assumption that adding more insulation or denser exterior surfacing panels will automatically solve thermal bridging and condensation problems. In reality, over-insulating or over-specifying panel thickness without providing adequate structural support or solar control can trap heat inside the building, driving up cooling energy consumption. The selection of the correct system depends directly on the system’s stress profile and the surrounding support structure.

To ensure long-term performance, design and construction teams must look beyond the visual rendering and analyze the physics of the system. Unlike traditional construction materials such as timber, steel, or reinforced concrete, glass and thin ceramic surfaces are elastic-brittle or semi-brittle materials. They do not yield before failure, which means that any design oversight, edge imperfection, or installation flaw can lead to sudden and total rupture or facade panel detachment.

Deep Contextual Background: System Evolution

The development of load-bearing facade design began in earnest with the invention of large-scale manufacturing processes in the mid-twentieth century. Before this innovation, buildings were constructed using thick, load-bearing masonry walls that added significant dead weight to the foundation. Landmark buildings in major US cities demonstrated the potential of the hung glass facade. These International Style buildings used lightweight skins of aluminum and glass, but the panels themselves remained non-load-bearing, supported by a heavy steel or concrete floor plate assembly.

The 1970s and 1980s saw a shift toward performance and structural independence. The introduction of insulating glass units (IGUs) and low-emissivity (Low-E) coatings transformed the building skin into an environmental filter. Designers began experimenting with ways to eliminate exterior metal supports. Engineers developed point-supported glazing systems, such as the planar fitting assembly, which transfer wind loads from the facade surface through articulated stainless steel nodes directly to secondary support structures like glass fins or tension trusses.

In the twenty-first century, the evolution of high-strength structural interlayers and composite panels has turned the building envelope into a composite structural material. Using ionoplast and specialized exterior interlayers allows multiple lites of glass or thin ceramic materials to act as a unified section, retaining residual load-bearing capacity even after one element fractures. Today, advanced projects specify closed-cavity facades (CCFs) and active skins that respond to external weather conditions. These designs require highly complex structural plans that integrate sensors, dynamic coatings, and structural silicone joints.

Conceptual Frameworks and Design Models

To analyze the structural performance of an envelope, engineers use specific mental models and analytical frameworks:

• The Stress Distribution and Concentration Model: This model treats the facade panel as a brittle or semi-brittle membrane and models the stress concentrations around holes, notches, and bolted connections. It requires the designer to ensure that local peak stresses remain below the material’s design capacity.

• The Post-Breakage Residual Capacity Framework: This model assumes that one or more elements within a laminated assembly will break. It calculates the load-bearing capacity of the remaining intact materials and the interlayer to prevent catastrophic collapse.

• The Thermal-Bridge and Deflection Matrix: This model evaluates the thermal performance and deflection characteristics of the structural assembly under wind and gravity loads. It optimizes the balance between maximum structural span and frame deflection.

Technical Classifications and System Variations

To properly determine how to avoid exterior cladding failure, designers compare variations based on their structural support mechanisms, material composition, and intended application in commercial architecture.

Comparison of Exterior Cladding Systems

System Variation	Assembly Makeup	Structural Characteristics	Best Use Cases	Trade-Offs
Monolithic Tempered Glass	Single lite, thermally toughened	High bending strength, poor post-breakage behavior	Frameless balustrades, heavy canopy fins	Spontaneous breakage due to NiS
Laminated PVB Glass	Two or more lites with PVB interlayer	Moderate post-breakage retention	Overhead glazing, sloped roofs	Susceptible to moisture edge-delamination
Laminated Ionoplast Glass	Two or more lites with ionoplast interlayer	High rigidity, excellent post-breakage residual strength	Structural fins, glass floors, point-supported walls	High material cost, difficult to bend
Metal Composite Material (MCM)	Two metal skins bonded to a thermoplastic core	Lightweight, high rigidity-to-weight ratio, high span capacity	Commercial high-rises, spandrel bands	Susceptible to buckling if not detailed with movement joints
Fiber-Cement Panels	Cement matrix reinforced with cellulose fibers	High fire resistance, durable, low maintenance	Educational and healthcare facilities	Brittle material requiring careful fastener installation
High-Pressure Laminates (HPL)	Resin-impregnated paper cores under high pressure	Exceptional impact resistance, diverse finishes	Urban infill, heavy pedestrian zones	Higher material cost and specialized fastening required
Terracotta Rainscreen	Extruded natural clay modules	Excellent acoustic damping, natural aesthetics, non-combustible	Institutional and civic buildings	High weight requiring robust sub-framing
Insulated Metal Panels (IMP)	Foam core sandwiched between two metal faces	High insulation performance, rapid installation	Industrial and cold storage	Limited architectural profile variability

System selection requires a rigorous analysis of environmental and structural loads. For example, an engineer designing a high-capacity structural fin in a seismic zone would specify a laminated ionoplast system. The ionoplast interlayer provides high shear stiffness, allowing the fin to carry large bending moments without excessive deflection. In contrast, for a balustrade that requires high impact resistance but less structural rigidity, a standard laminated PVB assembly is often sufficient.

Detailed Real-World Scenarios How to Avoid Exterior Cladding Failure

The practical execution of structural plans depends on local constraints, climatic exposures, and building geometries.

Scenario A: The Long-Span Glass Fin Wall

A two-story commercial atrium requires a highly transparent, 24-foot-tall glass wall without intermediate vertical steel columns. The wall must resist a high wind load of 40 pounds per square foot while limiting the horizontal deflection of the glass fins to prevent the silicone joints from tearing.

• Decision Point: Choosing between a laminated tempered glass fin and a laminated ionoplast structural fin.

• Analysis of Options:

  • Option 1 (Laminated Tempered): Under wind load, the PVB interlayer in the laminated tempered fin shears, leading to large deflections and potential edge rotation at the fixing nodes.

  • Option 2 (Laminated Ionoplast): The ionoplast interlayer transfers shear forces efficiently between the lites, keeping the deflection within the allowable limits of the structural silicone sealant.

• Second-Order Effect: The high stiffness of the ionoplast fin places greater reaction loads on the concrete floor slabs, requiring the design of stronger embedded steel anchors.

Scenario B: The Sloped Glass Skylight

A large, sloped skylight over a public museum space must support both live maintenance loads and snow loads. The design must ensure that if a maintenance worker drops a tool or if the glass breaks under a snow load, the glass fragments do not fall onto the exhibition space below.

• Decision Point: Using a monolithic heat-strengthened lite versus a laminated assembly with an ionoplast or PVB interlayer.

• Analysis of Options:

  • Option 1 (Monolithic Tempered): If broken, tempered glass shatters completely into small dice that fall through the opening, creating an unacceptable life-safety hazard.

  • Option 2 (Laminated Assembly): The laminated configuration retains the broken glass fragments on the interlayer, providing a secondary safety barrier that protects the public space below.

Scenario C: The Structural Glass Floor

A commercial mezzanine features a floor supported by structural steel beams. The floor must support heavy pedestrian live loads while maintaining a non-slip surface and absolute structural integrity without excessive vibration.

• Decision Point: Specifying a three-lite laminated ionoplast makeup versus a two-lite laminated tempered makeup.

• Analysis of Options:

  • Option 1 (Two-Lite Makeup): The failure of one lite leaves only a single lite to carry the live load, resulting in a low factor of safety and noticeable deflection under foot traffic.

  • Option 2 (Three-Lite Makeup): The three-lite makeup provides a redundant load path. If the top sacrificial lite breaks, the remaining two lites continue to carry the full design load with an adequate safety factor.

Scenario D: The Multi-Story Urban Office Facade

An urban mid-rise office building requires a continuous, sleek exterior skin with high thermal insulation and narrow vertical sightlines. The design must resist heavy wind loads in a high-density downtown area while limiting noise transfer from surrounding traffic.

• Decision Point: Choosing between an insulated metal panel system and a terracotta rainscreen with continuous exterior insulation.

• Analysis of Options:

  • Option 1 (Insulated Metal Panel): Provides high R-values and quick installation speeds, but may not meet the desired acoustic performance or aesthetic goals of a high-end development.

  • Option 2 (Terracotta Rainscreen): Provides superior acoustic damping and a longer-lasting aesthetic, but requires a more robust aluminum sub-frame and adds significant dead load to the perimeter columns.

Planning, Cost, and Resource Dynamics

The financial framework of structural projects is sensitive to the design, specification, and fabrication processes. Overspecification often leads to significant cost premiums without measurable improvements in performance.

Estimated Cost Variance by Assembly Type

Category	Typical Cost Range per Sq Ft	Primary Cost Drivers
Monolithic Toughened Glass	$25 – $50	Tempering, heat-soaking, edge polishing
Laminated PVB Glass	$45 – $85	Interlayer thickness, autoclave time
Laminated Ionoplast Glass	$95 – $180	Raw material cost, specialized handling
Metal Composite Material (MCM)	$35 – $75	Aluminum pricing, custom paint finishes, routing
High-Pressure Laminates (HPL)	$55 – $110	Raw material import costs, specialty clips
Terracotta Rainscreen	$75 – $150	Clay extrusion, structural sub-framing weight
Insulated Metal Panels (IMP)	$30 – $65	Panel thickness, joining details, urethane core

Opportunity costs are prevalent in this market. Choosing large-format lites or solid panels often requires specialized hoisting equipment and street closures during installation. Furthermore, if a lite breaks during construction, the replacement lead time for custom-tempered glass or unique metal panels can delay the entire project schedule by several months.

Tools, Strategies, and Support Systems

To design with the best options and understand how to avoid exterior cladding failure, facade engineers use several analytical and testing platforms:

1. Finite Element Analysis (FEA) Software: Programs such as ANSYS or SAP2000 model the stress concentrations around holes and calculate the deflection of complex glass or metal shapes under load.

2. LBNL Window/Therm Software: Used to determine the center-of-glass and overall U-values, solar heat gain coefficients, and condensation resistance index of the assembly.

3. Heat-Soak Ovens: A quality-control process that exposes tempered glass to elevated temperatures to force the failure of lites with nickel-sulfide inclusions before they are shipped to the site.

4. Acoustic Testing Chambers: Used to verify the sound transmission class (STC) rating of the structural assembly in noisy urban environments.

5. Wind Tunnel Testing: Physical models tested in boundary-layer wind tunnels to determine localized peak pressures on complex canopies and wall systems.

6. Full-Scale Structural Mock-Ups: A 1:1 scale test of the connection details and panel lites to confirm the performance of the system before mass production.

The Risk Landscape: Structural Vulnerabilities and Failure Modes

Understanding the risk landscape and identifying the compounding failure modes is critical to preventing structural or solid makeups from failing.

• Nickel Sulfide (NiS) Inclusions: Microscopic impurities in float glass that can expand over time, causing tempered glass to shatter spontaneously without an external load. Specifying heat-soak testing significantly reduces this risk.

• Edge Delamination: The separation of the interlayer from the glass along the perimeter, caused by exposure to moisture or UV radiation, which weakens the composite action of the laminated makeup.

• Thermal Stress Fracture: Breakage caused by a temperature differential between the hot, sun-exposed center of the material and the cool, frame-shaded edge.

• Silicone Reversion: The chemical degradation of structural silicone joints caused by incompatibility with adjacent setting blocks or cleaning solvents.

Governance, Maintenance, and Long-Term Adaptation

Structural and solid facade systems require an active maintenance program to achieve their target lifespan of 30 to 50 years.

The Layered Maintenance Checklist

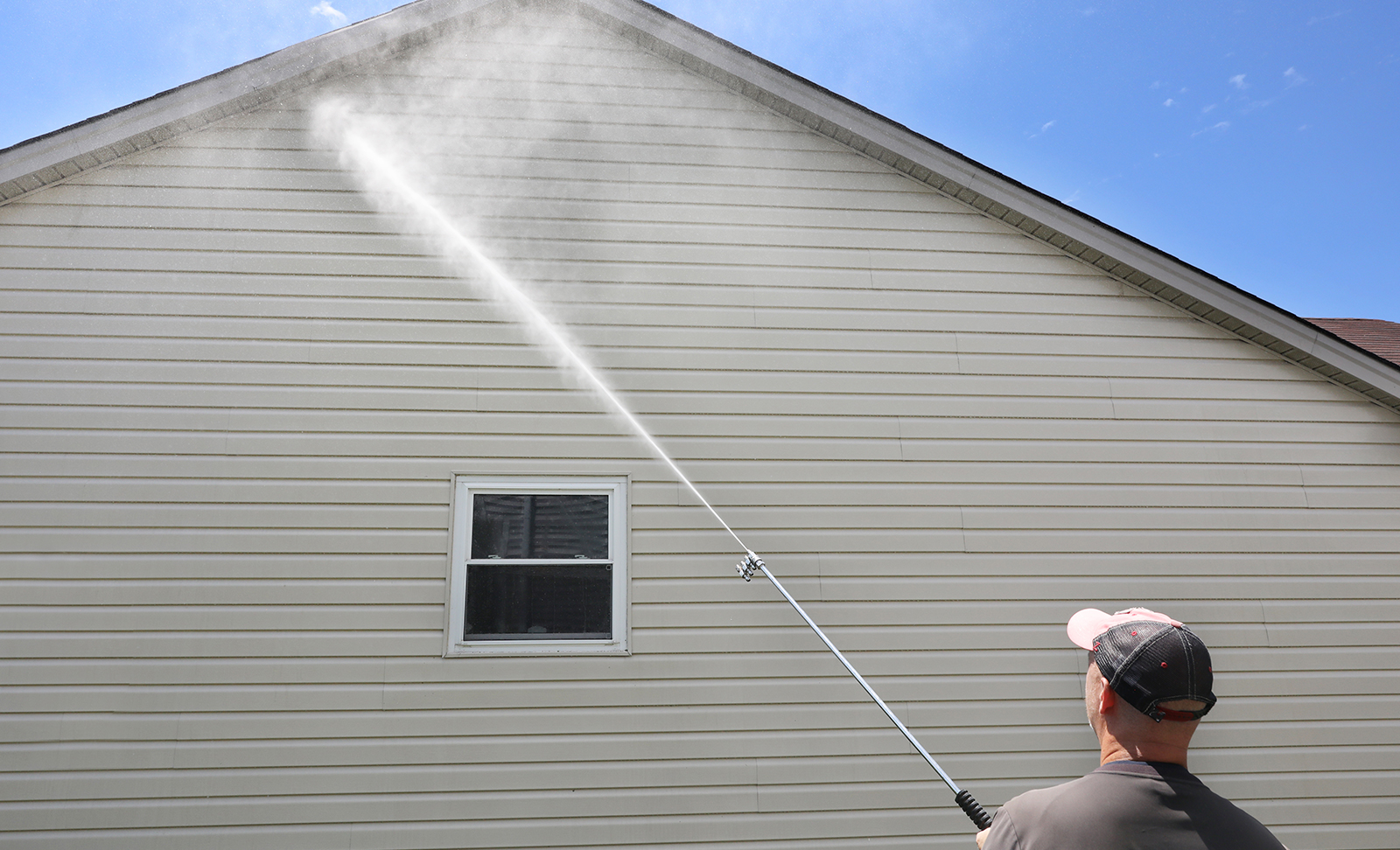

• Bi-Annually: Wash the panels and inspect the exterior silicone seals for signs of cracking or detachment.

• Every Five Years: Perform a detailed pull-test or inspection of the structural silicone joints and mechanical nodes.

• Replacement Triggers: Replace any insulating unit or composite panel that shows signs of internal condensation or warping, which indicates a failure of the primary edge seal.

• Documentation and Records: The facility manager must maintain a digital log of the makeup, batch number, and installation location of every architectural element.

Measurement, Tracking, and Evaluation How to Avoid Exterior Cladding Failure

Assessing the performance of a building skin requires both quantitative and qualitative methods:

• Leading Indicators: Real-time data from strain gauges attached to the support brackets or nodes, measuring deflection and stress during high wind events.

• Lagging Indicators: The frequency of spontaneous material breakage or the increase in overall building cooling loads due to seal failure.

• Documentation Examples:

  • Digital Twins: A model tracking every panel, its material properties, and its location on the building.

  • Calibration Reports: Records verifying the bolt torque applied to all countersunk connections during assembly.

  • As-Built Dimensional Surveys: Measurements comparing the structural frame to the fabrication tolerances.

Common Misconceptions and Oversimplifications

• Myth: All structural or composite materials are equally strong.

  • Correction: The strength of an assembly depends on the heat treatment (tempered vs. annealed) and the composite action of the interlayer or core.

• Myth: PVB and Ionoplast interlayers can be used interchangeably.

  • Correction: Ionoplast interlayers are significantly stiffer and transfer shear forces more effectively, making them necessary for long-span structural fins.

• Myth: Glass has a ductile yield phase.

  • Correction: Glass is a purely elastic, brittle material that fails without warning when its tensile stress limit is exceeded.

• Myth: Toughened glass is free from imperfections.

  • Correction: Toughened glass can contain nickel-sulfide inclusions that lead to spontaneous breakage.

• Myth: Structural glazing silicone acts as a simple weather seal.

  • Correction: Structural silicone transfers lateral loads to the frame and must be designed with an adequate structural bite.

• Myth: Metal panels behave the same under high winds.

  • Correction: Flat metal panels are prone to oil-canning and vibration unless reinforced with intermediate stiffeners or composite backing.

Ethical and Contextual Considerations

The specification of load-bearing facade assemblies involves significant sustainability and ethical responsibilities. The production of float glass, metal panels, and the energy-intensive heat-treating process generate substantial embodied carbon. Engineers and designers should balance the desire for transparency with the need for low-energy consumption over the building’s lifecycle.

Furthermore, transparent glass facades present a significant hazard to migratory bird populations. Ethical design considerations require the integration of fritted patterns, acid-etched designs, or ultraviolet-reflective coatings that make the glass visible to birds without compromising the structural integrity or performance of the envelope.

Synthesis and Editorial Perspective

The creation and execution of structural and solid facade plans require technical discipline, attention to detail, and intellectual honesty. A high-performance building envelope is a complex composite that must be engineered to withstand the effects of wind, thermal expansion, and mechanical loads.

As we continue to push the boundaries of energy efficiency in modern architecture, the safety and performance of these systems will depend on our ability to manage the material’s properties. By understanding the interaction between material chemistry, interlayers, and support hardware, designers can create commercial structures that are both light and durable.
