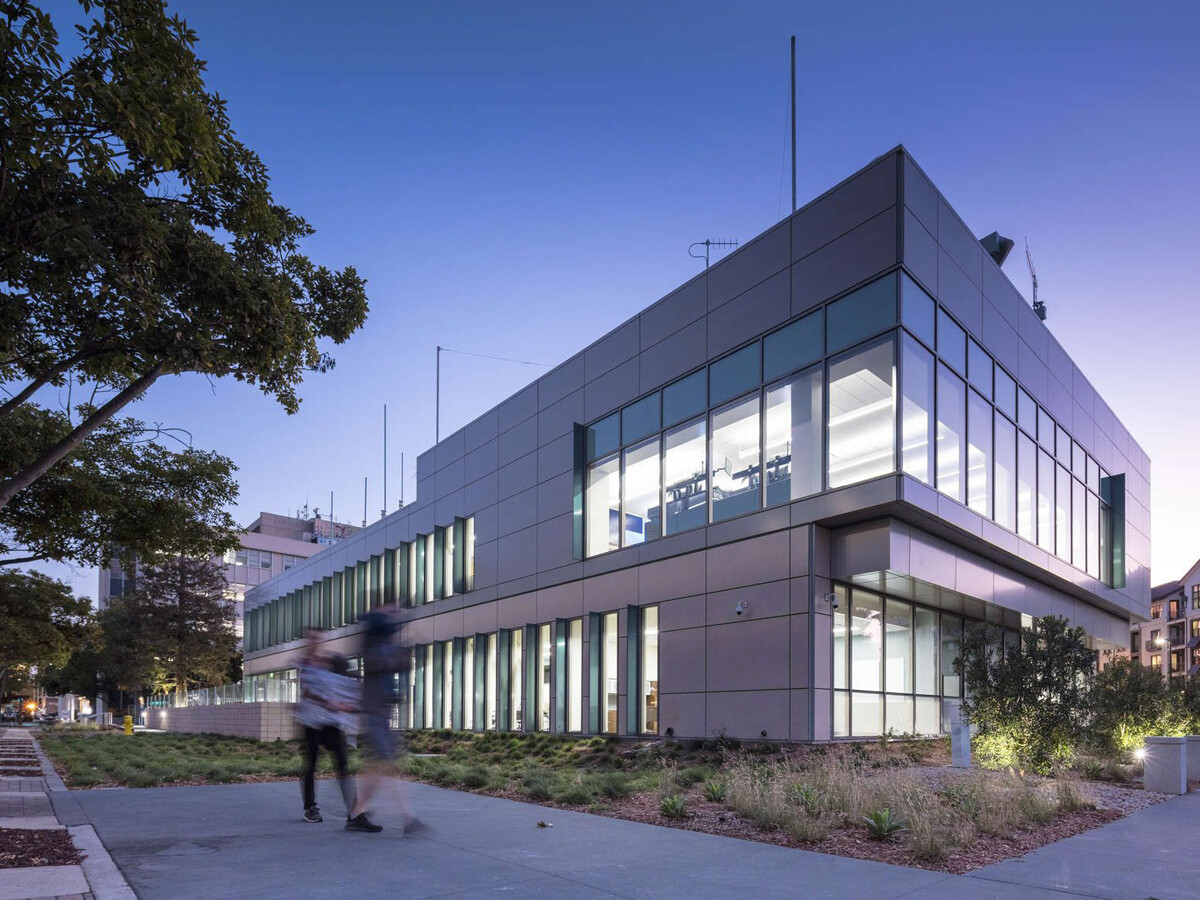

Top Commercial Facades America: Architectural Engineering Guide

The contemporary building envelope relies on structural transparency, durability, and strict environmental control. Designers and engineers face the task of integrating fenestration and cladding systems into the core architecture of large-scale facilities. Top Commercial Facades America. This approach requires balancing large, uninterrupted spans of exterior surfacing with structural stability, thermal performance, and occupant comfort.

The design of modern commercial facades goes beyond simple space division. Heavy exterior skins act as thermal, acoustic, and environmental barriers while maintaining minimal visual distraction and long-term durability. Achieving these conditions requires close collaboration among structural engineers, material scientists, and specialty installation contractors.

To ensure long-term performance and financial control, project teams must look past basic compliance metrics to analyze physical constraints and loading histories. This comprehensive reference document explores the engineering mechanics, system variations, testing methodologies, and economic variables that govern commercial facades. By examining the physical behavior of building systems, this guide provides a systematic methodology for specifying assets that remain efficient over their design life.

Introduction

High-performance architecture requires an integrated approach to building envelope design. The exterior wall must function as a thermal break, a moisture barrier, and a structural component capable of resisting dynamic wind loads. Specifying the correct materials ensures that the building envelope remains resilient across various climates and use cases.

The interaction between the outer cladding, the internal drainage cavity, and the structural backup wall dictates the lifespan of the building skin. Understanding these dynamics is central to modern architectural design. Without careful attention to the interfaces between components, the entire assembly risks premature failure, regardless of how durable the individual exterior panels are.

This guide provides a detailed look at the engineering principles, material science, and economic realities of modern facade engineering. By analyzing various material choices and system makeups, architects and engineers can choose assemblies that meet structural, environmental, and aesthetic performance goals.

Understanding Top Commercial Facades America

When design professionals and building envelope consultants investigate the concept of top commercial facades america, they must treat the building facade as an integrated thermodynamic system rather than a collection of independent exterior panels. The primary goal is to design an envelope that maximizes thermal resistance, manages moisture, and controls acoustic transfer without relying on unnecessary material weight or complex, high-maintenance connections.

A common pitfall in modern design is the assumption that adding more insulation or denser exterior surfacing panels will automatically solve thermal bridging and condensation problems. In reality, over-insulating without providing an appropriate continuous air barrier and vapor-permeable membrane can trap interior humidity within the structural cavity. The selection of the correct system depends directly on the building’s geographic location, exposure category, and internal usage profile.

To ensure long-term performance, design and construction teams must look past the visual rendering and analyze the physics of the system. Unlike traditional construction materials such as load-bearing masonry, lightweight ventilated facades rely on dynamic pressure equalization. Any design oversight, structural anchor imperfection, or installation flaw can lead to premature degradation of the water-resistive barrier and internal structural framing.

Deep Contextual Background: System Evolution

The development of exterior facade systems began in earnest with the post-war building boom of the mid-twentieth century. Before this period, large commercial facades relied on masonry load-bearing walls or heavy stone cladding supported directly by the building frame. These traditional approaches added substantial mass to the structure but performed poorly with respect to thermal bridging and lateral load resistance during seismic events.

The 1970s and 1980s saw a major shift toward performance and structural independence. The introduction of engineered curtain walls, thin-stone rainscreen systems, and high-performance sealants transformed the building skin into an environmental filter. Designers began experimenting with ways to decouple the exterior rain-shedding surface from the inner insulation and waterproofing layer. Engineers developed pressure-equalized rainscreen principles, which allow air to circulate behind the cladding, equalizing the pressure differential and preventing moisture from being drawn into the wall assembly.

In the twenty-first century, the evolution of high-strength structural fasteners and composite materials has turned the exterior facade into a highly engineered, active component of the building. Using fiber-reinforced concrete, high-pressure laminates, and ultra-high-performance metal panels allows designers to specify thinner, lighter profiles while achieving greater structural spans. Today, advanced projects specify smart facades with dynamic ventilation cavities and integrated photovoltaic systems, requiring highly complex structural plans that integrate sensors and advanced thermal breaks.

Conceptual Frameworks and Design Models

To analyze the structural performance of an exterior envelope, engineers rely on specific mental models and analytical frameworks:

• The Pressure-Equalized Rainscreen Model: This model treats the outer cladding as a loose-fit shield that deflects the bulk of driving rain. It requires the designer to size the ventilation openings and internal compartmentalization correctly so that the air pressure inside the cavity matches the external wind pressure, preventing capillary action or suction from pulling water into the backup wall.

• The Continuous Insulation and Thermal-Bridge Matrix: This model evaluates the flow of heat through the entire wall assembly, including fasteners, clips, and spandrel beams. It optimizes the balance between structural support and thermal resistance, ensuring that interior surface temperatures stay well above the dew point.

• The Dynamic Hygrothermal Analysis Framework: This framework simulates the coupled transport of heat and moisture through porous building materials over an annual weather cycle. It assesses the risk of interstitial condensation and structural wood or steel corrosion over time.

Technical Classifications and System Variations

To select the most appropriate strategy, designers compare variations based on their structural support mechanisms, material composition, and intended application in high-performance construction.

Comparison of Exterior Cladding Systems

System Variation	Assembly Makeup	Structural Characteristics	Best Use Cases	Trade-Offs
Metal Composite Material (MCM)	Two metal skins bonded to a thermoplastic core	Lightweight, high rigidity-to-weight ratio, high span capacity	Commercial high-rises, spandrel bands	Susceptible to buckling if not detailed with movement joints
Fiber-Cement Panels	Cement matrix reinforced with cellulose fibers	High fire resistance, durable, low maintenance	Educational and healthcare facilities	Brittle material requiring careful fastener installation
High-Pressure Laminates (HPL)	Resin-impregnated paper cores under high pressure	Exceptional impact resistance, diverse finishes	Urban infill, heavy pedestrian zones	Higher material cost and specialized fastening required
Terracotta Rainscreen	Extruded natural clay modules	Excellent acoustic damping, natural aesthetics, non-combustible	Institutional and civic buildings	High weight requiring robust sub-framing
Stone-Veneer Rainscreen	Thin stone panels mounted on aluminum rails	Classic appearance with a fraction of heavy stone weight	High-end corporate headquarters	Sensitive to localized edge stresses and freeze-thaw damage
Fibre-Reinforced Concrete	Cementitious mix with dispersed glass fibers	Thin, complex three-dimensional shapes	Custom building skins and organic forms	Requires detailed anchor design and thermal break pads
Insulated Metal Panels (IMP)	Foam core sandwiched between two metal faces	High insulation performance, rapid installation	Industrial and cold storage	Limited architectural profile variability

System selection requires a rigorous analysis of environmental and structural loads. For example, an engineer designing a high-capacity facade in a high-wind coastal zone would specify a strong extruded aluminum sub-frame paired with a pressure-equalized rainscreen. In contrast, for a low-rise educational facility that requires high impact resistance and non-combustible materials, a fiber-cement or terracotta rainscreen system is often the more suitable alternative.

Real-World Application Scenarios Top Commercial Facades America

The practical execution of facade engineering plans depends on local constraints, climatic exposures, and structural geometries.

Scenario A: The Multi-Story Urban Office Facade

An urban mid-rise office building requires a continuous, sleek exterior skin with high thermal insulation and narrow vertical sightlines. The design must resist heavy wind loads in a high-density downtown area while limiting noise transfer from surrounding traffic.

• Decision Point: Choosing between an insulated metal panel system and a terracotta rainscreen with continuous exterior insulation.

• Analysis of Options:

  • Option 1 (Insulated Metal Panel): Provides high R-values and quick installation speeds, but may not meet the desired acoustic performance or aesthetic goals of a high-end development.

  • Option 2 (Terracotta Rainscreen): Provides superior acoustic damping and a longer-lasting aesthetic, but requires a more robust aluminum sub-frame and adds significant dead load to the perimeter columns.

• Second-Order Effect: The increased dead load of the terracotta system requires the structural engineer to reinforce the cantilevered edge beams of the concrete frame.

Scenario B: The Coastal Educational Facility

A facility near the ocean must resist high salt-fog exposure and severe wind-driven rain. The design must prevent corrosion of the support clips and water infiltration into the structural sheathing.

• Decision Point: Specifying carbon steel framing clips versus high-grade marine-alloy stainless steel clips with isolators.

• Analysis of Options:

  • Option 1 (Carbon Steel Clips): Lower initial cost but prone to rapid galvanic corrosion and failure in a marine environment, leading to panel detachment.

  • Option 2 (Stainless Steel Clips with Isolators): Higher upfront cost but eliminates the risk of corrosion and forms a thermal break between the sub-frame and the backup wall.

• Failure Mode: Selecting standard-grade fasteners can create galvanic reactions with aluminum extrusions, causing cross-threaded failures and loss of holding strength.

Scenario C: The Freeze-Thaw Prone Institutional Building

An institutional building located in a northern climate with wide temperature swings requires an exterior skin that remains stable during repeated freeze-thaw cycles without cracking or joint failure.

• Decision Point: Selecting an adhered masonry veneer system versus a ventilated rainscreen.

• Analysis of Options:

  • Option 1 (Adhered Masonry): Water can infiltrate behind the mortar joints, where expanding ice creates tensile stresses that crack the system.

  • Option 2 (Ventilated Rainscreen): Allows any penetrating moisture to drain out and evaporate from the open joints, preventing moisture accumulation and freeze-thaw degradation.

• Compounding Risk: Improper drainage detailing at the base of the wall can trap water above the foundation, leading to efflorescence and mold growth within the wall cavity.

Scenario D: The Complex Geometry Civic Center

A public performing arts center features a curved facade with asymmetrical window arrangements, requiring dynamic panel layouts and tight joints.

• Decision Point: Specifying a standard unitized panel system versus a custom precast concrete-panel configuration.

• Analysis of Options:

  • Option 1 (Unitized Panel System): Difficult to adapt to highly non-planar surfaces without creating large variations in the joint widths.

  • Option 2 (Precast Concrete or Custom FRP Rainscreen): Molded components allow for tight, continuous joints and consistent performance around curved edges.

• Design Consideration: The added weight of custom concrete shapes requires structural modifications to the building’s foundation and primary frame.

Planning, Cost, and Resource Dynamics

The financial framework of facade engineering is sensitive to the design, procurement, and fabrication processes. Overspecification or late changes to panel dimensions often lead to significant cost premiums without measurable improvements in performance.

Estimated Cost Variance by Assembly Type

Category	Typical Cost Range per Sq Ft	Primary Cost Drivers
Metal Composite Material (MCM)	$35 – $75	Aluminum pricing, custom paint finishes, routing
Fiber-Cement Panels	$25 – $55	Panel thickness, special coatings, fastener type
High-Pressure Laminates (HPL)	$55 – $110	Raw material import costs, specialty clips
Terracotta Rainscreen	$75 – $150	Clay extrusion, structural sub-framing weight
Stone-Veneer Rainscreen	$65 – $130	Stone source, fabrication, anchor points
Insulated Metal Panels (IMP)	$30 – $65	Panel thickness, joining details, urethane core

Opportunity costs are prevalent in this market. Choosing large-format architectural panels often requires specialized hoisting equipment and longer lead times for custom colors or finishes. Furthermore, if the shop drawings are not coordinated with the structural steel or concrete frame, the resulting dimensional adjustments can delay the entire construction schedule.

Tools, Strategies, and Support Systems

To design with the best options, facade engineers use several analytical and testing platforms:

1. Finite Element Analysis (FEA) Software: Programs such as ANSYS or SAP2000 model the stress concentrations around anchors and calculate the deflection of complex panel systems under dynamic wind loads.

2. WUFI Software: Used to calculate one-dimensional heat and moisture transport through multi-layer assemblies, ensuring the long-term hygrothermal safety of the wall.

3. Thermographic Cameras: Used during building audits to identify structural thermal bridges and areas with poor insulation coverage.

4. Acoustic Testing Facilities: Used to verify the sound transmission class (STC) rating of the wall assembly in noisy urban environments.

5. Wind-Tunnel Testing: Physical models tested in boundary-layer wind tunnels to determine localized peak pressures on complex canopies and wall systems.

6. Full-Scale Structural Mock-Ups: A 1:1 scale test of the connection details, panel joints, and air barrier makeups to confirm the performance of the system before mass production.

7. Water Penetration Testing Chambers: Used on-site according to AAMA and ASTM standards to ensure that the installed wall assembly does not leak during storms.

The Risk Landscape: Structural Vulnerabilities and Failure Modes

Understanding the risk landscape and identifying the compounding failure modes is critical to specifying facade makeups accurately.

• Anchor Corrosion and Failure: The loss of load-bearing capacity due to galvanic corrosion, oxidation, or improper anchor embedment into the backup wall.

• Delamination: The separation of the outer skin from the core material in composite panels, often caused by poor manufacturing quality or moisture intrusion along the edges.

• Air Barrier Puncture: Damage to the water-resistive barrier during the installation of sub-framing clips, leading to moisture infiltration into the cavity.

• Thermal Bridging at Fasteners: Excessive heat loss through metallic clips and fasteners, which lowers the overall effective R-value of the wall and causes interior condensation.

Governance, Maintenance, and Long-Term Adaptation

Facade systems require an active maintenance program to achieve their target lifespan of 30 to 50 years.

The Layered Maintenance Checklist

• Bi-Annually: Wash the exterior panels and inspect the perimeter joints for signs of sealant cracking or separation.

• Every Five Years: Perform a detailed pull-test or inspection of the structural anchors and check for signs of sub-frame corrosion.

• Replacement Triggers: Replace any panel that shows signs of warping or delamination, which indicates a loss of structural integrity.

• Documentation and Records: The facility manager must maintain a digital log of the makeup, batch number, and installation location of every panel on the facade.

Measurement, Tracking, and Evaluation

Assessing the performance of an exterior cladding system requires both quantitative and qualitative methods:

• Leading Indicators: Real-time data from strain gauges attached to the support brackets, measuring deflection and stress during high-wind events.

• Lagging Indicators: The frequency of panel repair or an increase in the building’s energy consumption due to air and moisture leakage.

• Documentation Examples:

  • Digital Twins: A model tracking every architectural panel, its material properties, and its location on the structure.

  • Calibration Reports: Records verifying the anchor torque applied to all support connections during assembly.

  • As-Built Dimensional Surveys: Measurements comparing the structural frame to the panel fabrication tolerances.

Common Misconceptions and Oversimplifications

• Myth: All exterior cladding panels are non-combustible.

  • Correction: Some composite panels include a thermoplastic core that can propagate fire if not specified with a fire-retardant formulation.

• Myth: Rainscreens prevent all moisture from entering the wall assembly.

  • Correction: Rainscreens are designed to let water enter and exit; they manage moisture through drainage and ventilation rather than absolute sealing.

• Myth: Adding continuous exterior insulation solves all thermal bridging problems.

  • Correction: Fasteners and structural clips can still act as thermal bridges unless isolated with non-metallic thermal break pads.

• Myth: All metal panels behave the same under high winds.

  • Correction: Flat metal panels are prone to oil-canning and vibration unless reinforced with intermediate stiffeners or composite backing.

• Myth: Sealant joints last the life of the building.

  • Correction: Sealants experience UV degradation and require replacement every 10 to 15 years.

Ethical and Contextual Considerations

The specification of exterior facade assemblies involves significant sustainability and ethical responsibilities. The production of metal panels, cementitious boards, and insulation materials generates substantial embodied carbon. Engineers and designers should balance the desire for durability with the need for low energy consumption over the building’s lifecycle.

Furthermore, transparent and glossy facades present a significant hazard to migratory bird populations. Ethical design considerations require the integration of fritted patterns, acid-etched designs, or ultraviolet-reflective coatings that make the glass and facade elements visible to birds without compromising the performance of the building envelope.

Synthesis and Editorial Perspective

The creation and execution of architectural facade plans require technical discipline, attention to detail, and intellectual honesty. A high-performance exterior wall assembly is a complex, composite system that must be engineered to withstand the effects of wind, thermal expansion, and mechanical loads.

As we continue to push the boundaries of energy efficiency in modern architecture, the safety and performance of these systems will depend on our ability to manage the material’s properties. By understanding the interaction between different layers, interlayers, and support hardware, designers can create structures that are both energy-efficient and durable.
